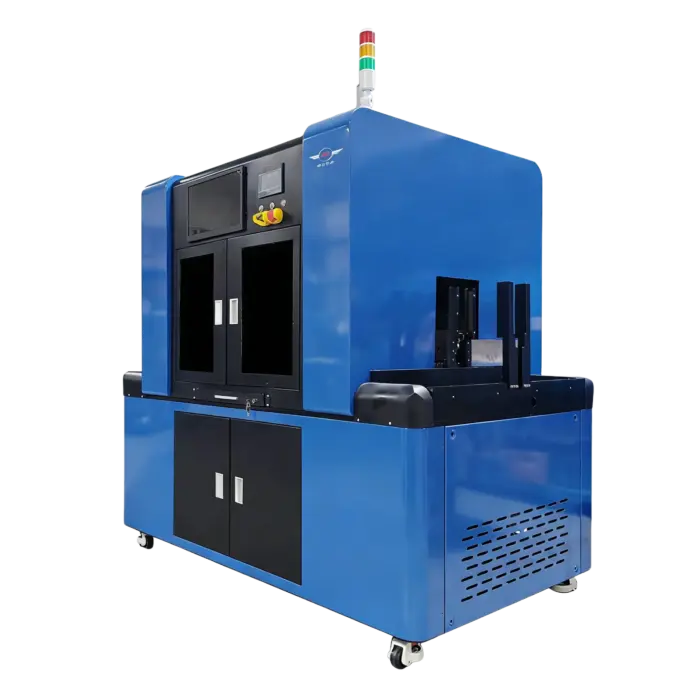

Automatic UV Laser Marking Machine

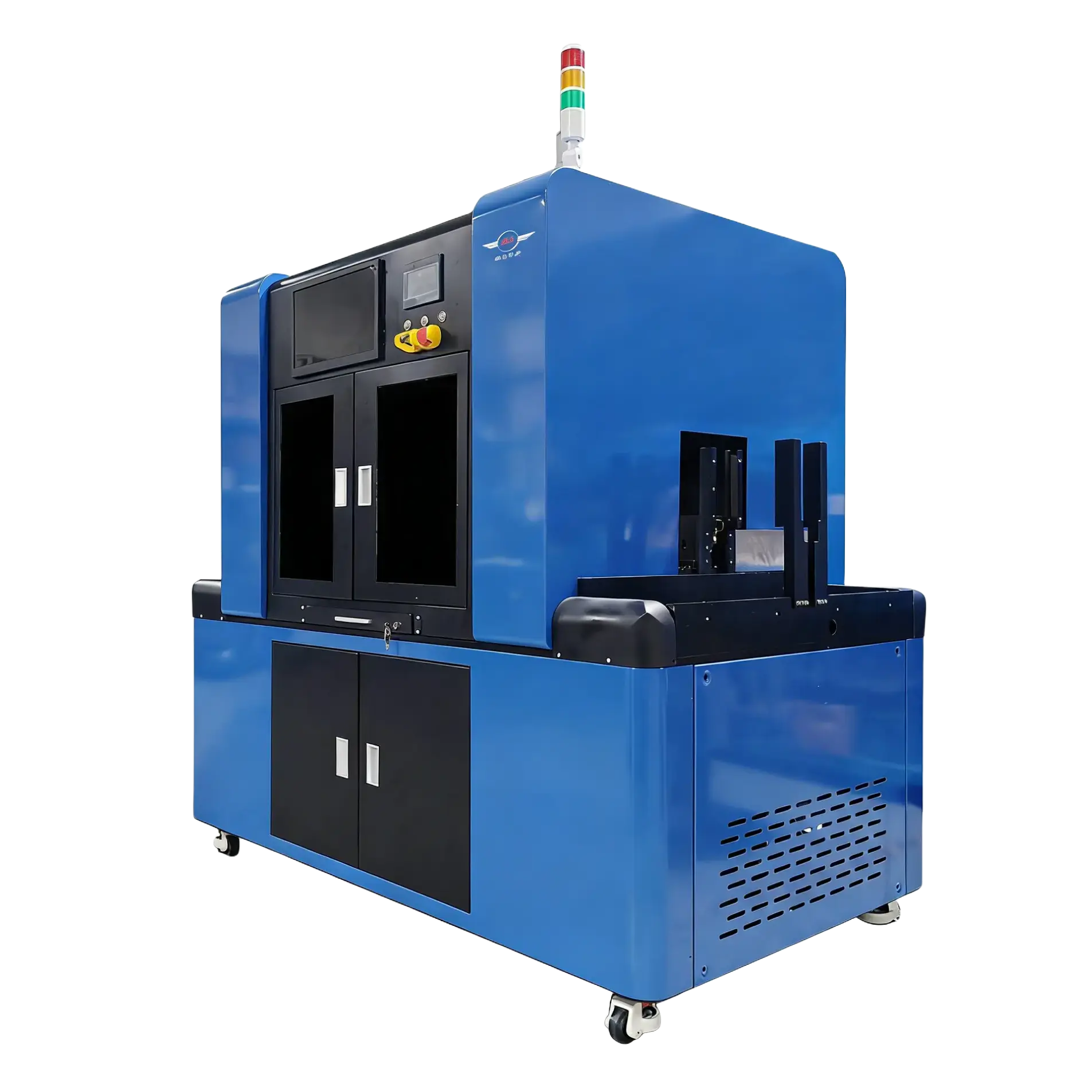

- Berlon Automatic UV Laser Marking Machine
- High-Speed CCD Laser Marker for SMD Products
- Berlon High-speed automatic UV laser marking machine with CCD vision positioning.
- Ideal for SMD products, supports variable data marking, QR codes, and high-precision laser engraving.
Get Free Quote!
High-Precision, High Speed Laser Marking for SMD Products
The Automatic UV Laser Marking Machine is a high-performance UV laser marking system designed for fully automated marking of SMD products.
Equipped with a 355nm ultraviolet laser and high-precision CCD vision positioning system, this machine delivers ultra-fine, high-contrast markings with excellent accuracy and consistency.
With fully automated feeding, marking, and unloading, the system significantly improves production efficiency and reduces manual labor, making it ideal for electronics manufacturing and high-volume production environments.
Key Features of the Automatic UV Laser Marking Machine
Fully Automatic Operation
The machine supports a fully automated workflow, including:
- Automatic sheet separation(stack feeding)
- Automatic laser marking
- Automatic unloading into trays
It supports both:
- Tray-to-tray feeding
- Stacked sheet feeding
This greatly reduces manual operation and increases efficiency.
High-Speed Production(Up to 120K UPH)
Designed for high-volume production, the machine achieves:
- 80,000-120,000 UPH (SMD products)
Production speed may vary depending on:
- Marking content
- Font type
- Filling density
High-Precision CCD Vision Positioning
The system is equipped with a high-precision CCD vision system to ensure accurate laser marking.
Two positioning modes are available:
- MARK point positioning(for regular layouts)
- Feature recognition positioning(for irregular layouts)
Positioning accuracy:
- Up to 0.001 mm repeatability
UV Laser for Ultra-fine Marking
The machine uses a 355 nm UV laser source, which provides:
- Minimal heat impact
- High precision marking
- Clear and permanent results
Suitable for:
- Micro marking
- Sensitive electronic components
- High-precision engraving
Laser power options:
- 3W/5W UV laser (optional)
Flexible Marking Functions
The system supports advanced marking features:
- Variable data marking
- Serial number increment/decrement
- Skip coding/batch coding
- QR code and barcode marking
- Custom text and layout settings
Minimum character size:
- 07mm
Intelligent Alarm and Safety System
The machine includes a complete alarm and safety system:
- Material shortage alarm
- Full tray detection
- Fault alarm(visual + sound)
- Emergency stop button
Indicator lights:
- Yellow - material shortage
- Red - machine fault
Smart Parameter Storage
For different product models:
- Parameters can be saved after initial setup
- Quickly recalled for future production
This improves operation efficiency and consistency.
How the UV Laser Marking Machine Works
The automatic UV laser marking machine operates through a fully integrated process；
- Stacked material sheets are automatically separated
- Individual pieces are transported to the marking platform
- The CCD vision system detects position and alignment
- The UV laser performs high-precision marking
- Marked products are automatically placed into trays
- Full trays are replaced automatically for continuous operation
This process ensures high-speed, precise, and fully automated production.
Technical Specifications (Overview)
|
Parameter |
Specification |
|---|---|
|
Machine Type |
Automatic UV Laser Marking Machine |
|
Laser Type |
UV Laser(355 nm) |
|
Laser Power |
3W/5W(optional) |
| Content |
Production Capacity |
|
Production Capacity |
80k-120k UPH |
|
Positioning System |
CCD Vision Positioning |
|
Positioning Accuracy |
Up to 0.001 mm |
|
Minimum Character Size |
0.07mm |
|
Power Supply |
220V |
|
Power Consumption |
1800W |
|
Air Requirement |
0.3-0.4MPa |
|
Cooling System |
Air cooling/Water cooling |
|
Operating Temperature |
0°C – 30°C |
|
Humidity |
35% - 90% RH |
|
Application Material |
SMD products |
|
Tray Capacity |
4-6 empty trays/6-8 full trays |
Applications
The UV laser marking machine is widely used in industries requiring high-precision and high-speed marking.
Electronic Manufacturing
- SMD components
- IC packaging
- PCB marking
Semiconductor Industry
- Micro components
- Precision parts
- High-density electronic devices
Industrial Manufacturing
- Product identification
- Traceability marking
- QR code labeling
Precision Components
- Small parts marking
- High-resolution engraving
- Non-contact marking applications
Why Choose Our UV Laser Marking Machine
- Fully automatic operation (feeding+marking+unloading)
- High-speed production up to 120K UPH
- High-precision CCD vision positioning
- UV laser for ultra-fine marking
- Supports QR code and variable data marking
- Intelligent alarm and safety system
- Reduced labor cost and improved efficiency
Our automatic UV laser marking machines are designed to deliver high precision, stable performance, and efficient production for modern manufacturing environments.
Frequently Asked Questions (FAQ)
A UV laser marking machine uses a 355 nm ultraviolet laser to create high-precision, permanent markings on materials, especially suitable for delicate and small components.
UV laser marking provides:
- Higher precision
- Minimal heat damage
- Clear and fine markings
It is ideal for electronics and micro components
UV laser marking machines are widely used in:
- Electronics manufacturing
- Semiconductor industry
- Precision engineering
- Industrial traceability systems
Yes, this machine supports fully automatic feeding, marking, and unloading, significantly improving production efficiency.
